Medical Imaging Micro-Coax
Custom Micro-Coax Cable Assemblies for Medical Imaging Modules
For imaging modules and precision internal routes that need controlled impedance, shielding stability, and clean compact execution
EDPcable supports custom micro-coax cable assemblies for medical imaging modules, precision internal signal routes, and other programs where connector family, wire gauge, impedance path, shielding behaviour, and compact fit all matter to the released build. The challenge is not getting one sample made. It is making sure connector matching, wire-gauge choice, impedance path, shielding structure, and version-linked files all stay aligned with the active imaging platform.
Quick Links
QUICK ACCESSStart with the sections closest to the project structure, interface requirements, and validation scope.
Medical Imaging Micro-Coax Product Overview
Medical-imaging micro-coax programs work best when the module context is already clear and the next review can focus on connector family, wire gauge, impedance path, shielding logic, compact fit, and version scope before sampling.
| NO | Item | Typical Range or Meaning |
|---|---|---|
| 01 | Typical Use | Medical imaging modules, compact internal signal routes, precision device-side interconnects |
| 02 | Common Structures | Fine-gauge micro-coax assemblies, compact routed signal links, precision internal harnesses |
| 03 | Key Inputs | Connector family, wire gauge, impedance notes, shielding structure, revision scope |
| 04 | Engineering Focus | Impedance stability, shielding execution, compact route fit, clean released scope |
| 05 | Quality Focus | Stable termination, repeatable route execution, version-linked records |
| 06 | Release Basis | Connector data, wire-gauge notes, impedance path, and active version records |
Customer Pain Points
Medical-imaging micro-coax projects often sound straightforward once the product or route category is known. In real RFQ and sample work, delays usually appear in route fit, structure judgement, and revision control rather than in the label alone.
| NO | Customer Pain Point | Typical Risk | What Needs Early Confirmation |
|---|---|---|---|
| 01 | Product design issues | The connector path, structure, or local fit still does not truly match the medical-imaging micro-coax build, so the sample becomes only a temporary reference | Connector references, route path, structure boundaries, and installation space |
| 02 | Product quality issues | Execution, local fit, or batch consistency drifts across repeated medical-imaging micro-coax builds | Structure definition, quality focus, and revision linkage |
| 03 | Lead-time issues | Missing inputs force repeated sample loops and slow quotation, release, and batch timing | Connector data, route notes, project stage, quantity, and timing |
| 04 | After-sales issues | It becomes difficult to tell whether the issue came from structure, revision, or installed conditions | Drawing files, sample approval records, batch labels, and shipment records |
| 05 | Complaint-handling issues | Revision boundaries are unclear, so issue tracing stays slow | Revision confirmation, batch correspondence, and inspection records |
| 06 | Pricing issues | A broad request turns into repeated pricing changes once real fit constraints surface | Structure complexity, material expectations, quantity, and delivery boundaries |
Product Applications
This route is not only a category label. In practice, medical-imaging micro-coax work usually appears in device programs where fit, route logic, and revision scope all matter. The scenes below are the most common application contexts.
| NO | Application Scene | Scene Focus | Typical Concerns |
|---|---|---|---|
| 01 | Imaging modules | precision route control inside compact internal signal structures | connector matching, local clearance, and impedance boundaries |
| 02 | Probe-side internal links | shielded execution with tighter small-scale route discipline | wire gauge, shielding structure, and compact fit |
| 03 | Precision diagnostic equipment | repeatable micro-coax execution across controlled builds | file correspondence, batch records, and issue tracing |
| 04 | Validation-heavy pilot programs | sample-to-release continuity before batch introduction | review timing, released basis, and approval scope |
| 05 | Replacement and upgrade programs | matching old fine-gauge routes to the active imaging platform | usable scope, after-sales tracing, and version boundaries |
Application Scene Visuals
IMAGES · 05
Micro-coaxial harness inside an imaging-acquisition module

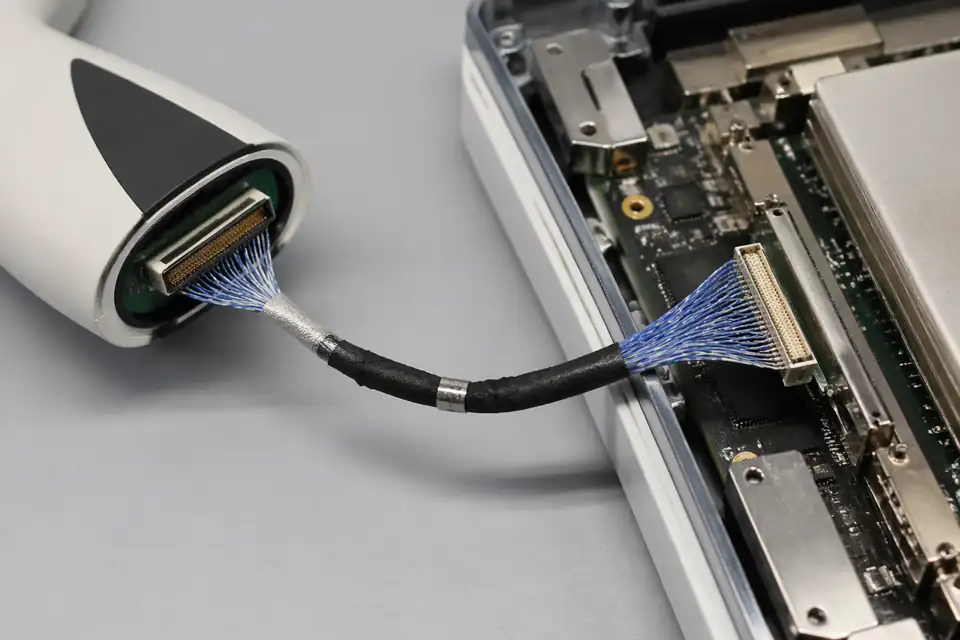

Micro-coaxial harness between an imaging probe and host-side electronics

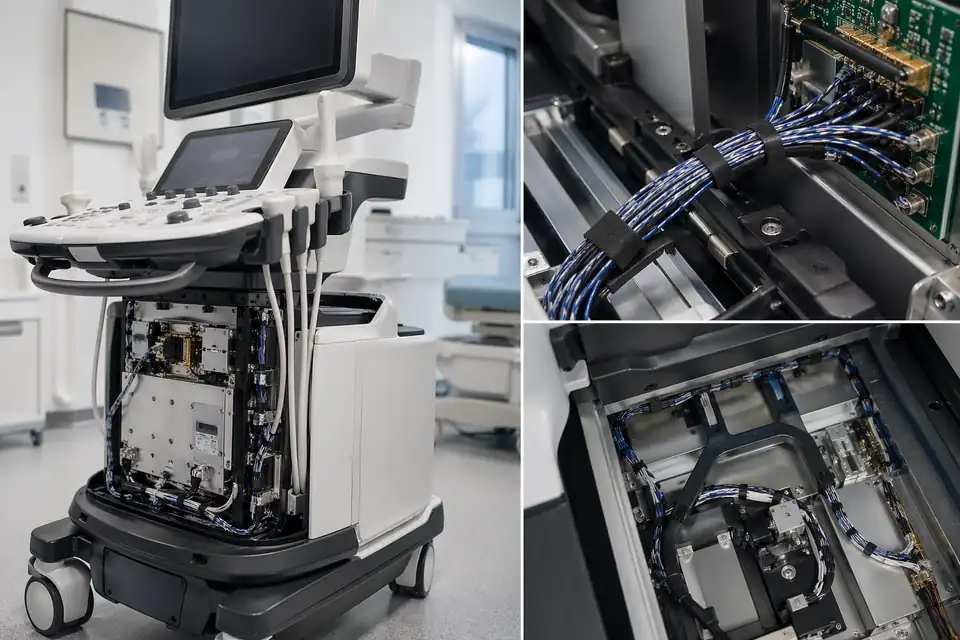

Micro-coaxial harness inside a mobile medical imaging device

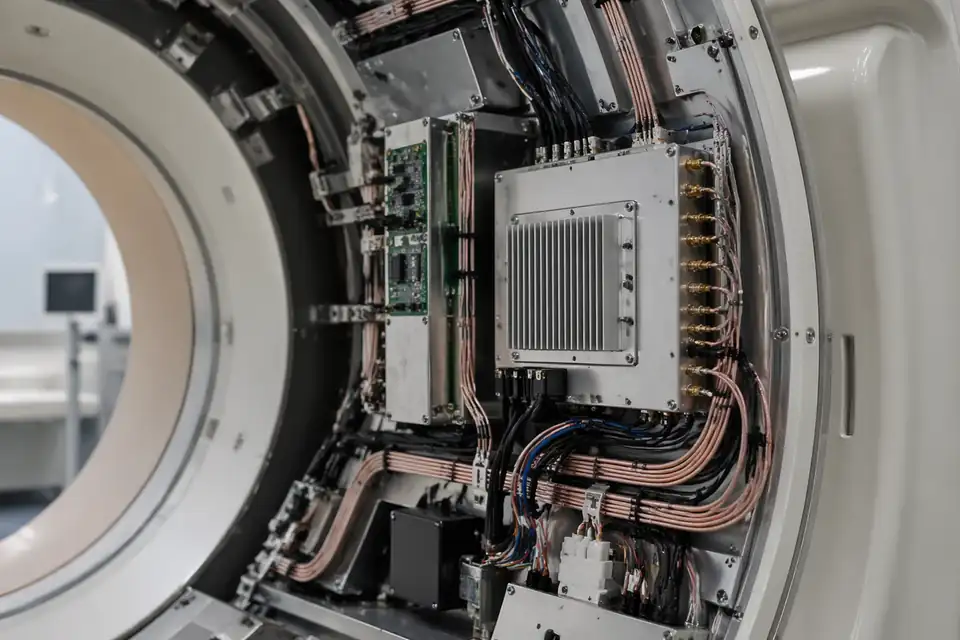

Micro-coaxial harness inside a diagnostic imaging subsystem

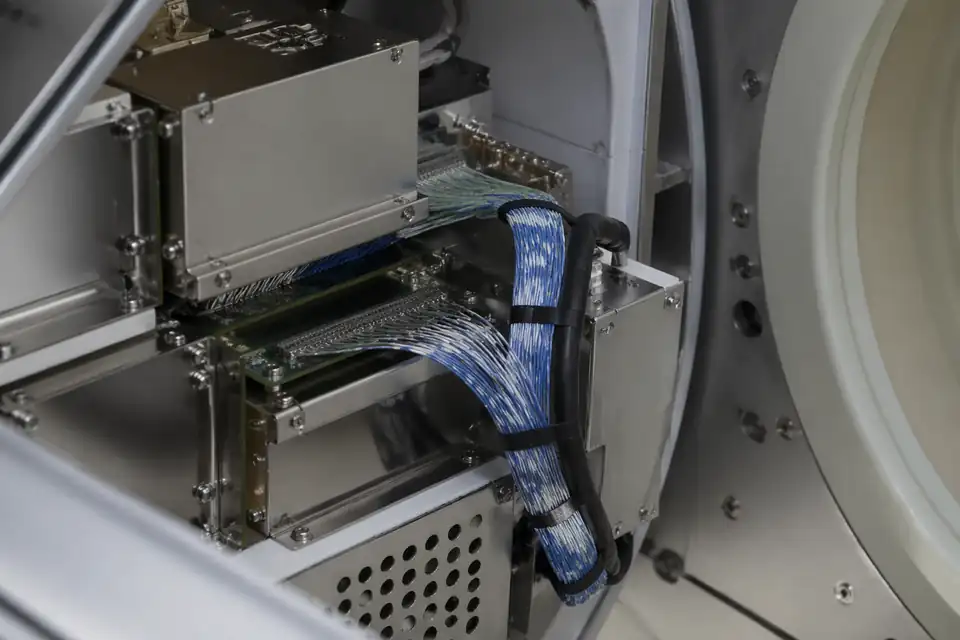

Micro-coaxial harness inside a high-density medical-imaging interconnect area
Medical Imaging Micro-Coax Definition Matrix
An imaging harness is defined by the module boundary and signal architecture, not by the word medical. Channel count, coax construction, connector mapping, grounding, motion, cleaning exposure, and device validation remain project inputs.
| NO | Design Field | Engineering Input | Release Boundary |
|---|---|---|---|
| 01 | Imaging module | Probe, camera, sensor, detector, or internal board boundary | Named source and destination |
| 02 | Channel architecture | Active coax, twinax, discrete, power, and control circuits | Approved interface map |
| 03 | Connector system | Complete device and cable-side part numbers | Manufacturer mating definition |
| 04 | Cable geometry | Wire size, bundle layout, length, and breakout | Controlled construction drawing |
| 05 | Grounding | Individual returns, common shield, shell, and chassis bonds | Ground schedule |
| 06 | Mechanical route | Flex zones, torsion, strain relief, and enclosure exits | Installed route model |
| 07 | Material exposure | Cleaning agents, handling, temperature, and patient-contact boundary | Customer-approved material list |
| 08 | System performance | Image quality, noise, bandwidth, and artifact criteria | Device-side validation plan |
First-Party Engineering References
- ISO 13485 medical-device QMS overview
Supports controlled medical-device quality processes; it does not certify a cable design or imaging result.
- I-PEX micro-coaxial selection overview
Provides cable construction and electrical selection fields that still require device-specific qualification.
Imaging Harness Failure-Mode Review
Imaging defects may originate in mapping, grounding, motion, termination, or the system channel. The cable review must avoid diagnosing image performance from continuity alone.
| NO | Failure Mode | Possible Harness Cause | Engineering Response |
|---|---|---|---|
| 01 | Channel dropout | Open circuit, wrong map, or damaged termination | Correlate netlist with affected channel |
| 02 | Intermittent artifact | Motion loads connector exit or fine coax joint | Instrument flex zone during device test |
| 03 | Noise increase | Shield, return, or shell path differs from release | Audit grounding and installed route |
| 04 | Module mismatch | Connector fits but pin or revision differs | Lock endpoint revision and interface map |
| 05 | Cleaning damage | Material exposure exceeds approved BOM condition | Validate actual cleaning protocol |
| 06 | False cable attribution | Sensor, front end, or processing causes image defect | Use controlled substitution and system diagnostics |
Medical Imaging Harness Verification Plan
Cable-level evidence confirms identity, mapping, workmanship, and agreed electrical checks. Final diagnostic or imaging performance remains an equipment-level responsibility under the customer's validation process.
| NO | Verification Item | Method | Acceptance Evidence |
|---|---|---|---|
| 01 | Interface identity | Verify both endpoints and mating revisions | Approved BOM and drawing |
| 02 | Channel mapping | Continuity and short test against channel netlist | Per-assembly electrical record |
| 03 | Termination workmanship | Magnified joint and shield preparation inspection | First-article inspection output |
| 04 | Route and strain relief | Fit check in representative device geometry | Installation approval |
| 05 | Signal behavior | Measure the customer-defined impedance, loss, or skew on the released BOM and length, or run the specified imaging-system check | Report fixture, reference planes, frequency or rise-time range, sample scope, environment, measured result, and acceptance window |
| 06 | Cleaning compatibility | Customer-defined exposure on approved material build | Material and exposure result |
| 07 | Image performance | Customer equipment test with released harness | Device validation record |
Engineering Capability
Engineering value in a medical-imaging micro-coax page comes from tying route fit and structure judgement together before release. Cross-family engineering review, drawing control, and documentation practice are covered in the Related Capability Pages below.
Engineering Capability
Review route path, connector references, and local fit together for the medical-imaging micro-coax build.
Quality and Verification Highlights
Watch local-fit zones, connector exits, and route transitions specific to medical-imaging micro-coax installs.
Evidence Chain
Controlled wire-gauge and impedance drawing
Keep connector references, wire gauge, project-defined impedance requirements, route, and active imaging-platform revision on one released drawing basis so samples and production do not drift apart.
Shielding and installed-fit review
Record shield termination, retention, compact clearance, and module-side route conditions so the sample can be checked against the medical-imaging installation boundary.
Sample and batch correspondence
Tie sample approval, agreed impedance or electrical results, batch labels, and shipment records to the active imaging-platform definition so later version changes remain controlled.
Files and Batch Support
Medical-imaging micro-coax work has its own document layer around route and fitting boundaries. Cross-family file control, batch traceability, and certification practice are summarised in the Related Capability Pages.
Medical-imaging micro-coax route and fitting-boundary records
Capture the route path, local fit, and installation-space limits that are specific to the medical-imaging micro-coax build so later structural differences can be traced back to the right layer of change.
Certifications / Records Visuals
IMAGES · 04
Micro-coaxial assembly document-control scene with records and labels secondary to the harness
Micro-coaxial controlled record scene with compact harness sample foreground and document support
Micro-coaxial batch traceability archive with fine connector lot labels and cable sample visible
Micro-coaxial released-sample approval folder beside shielded harness and compact module mockup
FAQ
Can you build medical-imaging micro-coax assemblies from old samples or old parts?
Yes. Existing samples help, but connector matching, wire-gauge choice, impedance notes, and active platform revision still need to be confirmed before the sample can represent the released build.
What is the minimum input for a medical-imaging micro-coax quotation?
Send connector references, wire-gauge notes, impedance expectations, project stage, and expected quantity.
Why do medical-imaging micro-coax programs need more than connector model and cable length?
Because impedance path, shielding structure, compact fit, and version scope often decide whether the assembly can actually be released cleanly.
Can one medical-imaging micro-coax assembly cover several platform versions?
Sometimes, but only if connector family, wire-gauge notes, route geometry, and revision boundaries stay inside the same approved definition.
Can review start before the full drawing package is complete?
Yes. Early review can start from connector references, route context, and current precision-fit limits, then tighten as the file package becomes clearer.
