Technical Reference · KEL-USL-SSL

KEL USL / SSL Compatible Interface

Custom Micro-Coax Cable Assemblies Compatible with KEL USL / SSL Connectors

For fine-wire micro-coax and camera-module programs where the BOM, drawing, or sample already locks the KEL USL / SSL connector system

EDPcable manufactures custom micro-coax assemblies for complete KEL cable-side and board-side part numbers specified in a BOM, drawing, sample, or legacy part. USL is a 0.4mm-pitch horizontal family, typically associated with AWG42 and approximately 1.0mm mounting height. SSL is a 0.5mm-pitch family, typically associated with AWG40, with horizontal or vertical variants and part-specific height; approximately 1.4mm is a horizontal reference only. Suffix, pin count, mating direction, supported wire, IDC termination, grounding, and height follow the original-maker catalog and released drawing.

KEL USL / SSL Compatible0.4mm / 0.5mm-Pitch Micro CoaxIDC TerminationMulti-Point Shield GroundingSeries-Specific HeightOEM / ODM

Quick Links

QUICK ACCESS

Start with the sections closest to the project structure, interface requirements, and validation scope.

Non-branded KEL USL / SSL-compatible custom micro-coaxial cable assembly: a low-profile board connector with a fan-out of fine coaxial wires routed toward a compact camera-module board, drawn as a clean engineering line-art view
OEM · ODM READY
SEC · 01Connector Snapshot

KEL USL / SSL Compatible Project Overview

Once a KEL USL or SSL interface is locked, review centers on the complete part number and its series-specific pitch, wire gauge, mating direction, pin count, mounting height, and grounding details.

KEL USL / SSL Compatible Project OverviewROWS · 04
NOReview ItemTypical Range or Meaning
01Typical InterfaceKEL USL series (such as USL20-30S), SSL series (such as SSL00-30), or the KEL fine-pitch micro-coax interface specified in the customer BOM
02Key InputsFull part number and variant, pitch step, mating side, pin count, wire gauge, shield grounding, mounting height and route space
03Boundary RiskUSL and SSL differ in pitch and cannot be assumed interchangeable; variants within one series (part-number suffix) can differ in structural detail
04Release BasisCustomer-confirmed drawing, BOM, sample, mating reference, and version boundary
USL and SSL require separate wire-gauge, mating-direction, mounting-height, and grounding confirmation; do not apply a combined range.
For a finer 0.25mm pitch, the KEL XSL system belongs on the 0.25mm-pitch page instead.
SEC · 02Compatibility Review Inputs

Compatibility Review Inputs

Use these items as first-round review inputs so the discussion does not rely on the page label alone.

01

Identify either USL or SSL and provide the complete cable-side and board-side part numbers, suffix variants, BOM, or legacy-part photos.

02

Provide the selected part's pitch, mating direction, pin count, supported wire gauge, and shield-grounding requirements.

03

Describe the mounting height, bend radius, retention points, and local space.

04

State the project stage, sample quantity, pilot quantity, and target lead time.

05

For legacy replacement or multi-model platforms, state the applicable pitch and version boundary.

SEC · 03Compatibility Boundary

Connector Compatibility Boundary

KEL compatibility starts with the complete part numbers. USL is 0.4mm pitch, SSL is 0.5mm pitch, and suffixes such as USL20-30S or SSL00-30 carry their own pin-count, height, and mating requirements.

Connector Compatibility BoundaryROWS · 06
NOReview ItemWhy It MattersSuggested Input
01Full part number and variantUSL, SSL, XSL, and their suffixes can differ in pitch, pin count, mating, and height; the series name does not establish interchangeabilityBOM, drawing, purchasing part number, or clear photos
02Pitch step0.4mm USL and 0.5mm SSL define different connector families; bundle size follows the exact part's pin count and supported wire gaugeTarget pitch, available module space
03Mating-side interfaceCable and board ends must match the actual horizontal or vertical mating direction and alignmentMating connector model, board-side position, or a sample
04Pin count and wire gaugePin count and supported AWG determine bundle diameter, flexibility, and termination pathPin count, AWG, signal requirements
05Shielding and multi-point groundingShield handling and the specified multi-point ground path affect system EMI behaviourShield structure, grounding-point definition, system-level EMC conditions
06Mounting height and route spaceCompare the selected variant's mating direction and height with module clearance and bend spaceAvailable height, bend radius, route sketch or 3D space
SEC · 04Customer Pain Points

Customer Pain Points

KEL connector-led micro-coax projects tend to run into the same pain points. The early confirmations below keep them from surfacing after sampling.

Customer Pain PointsROWS · 03
NOCustomer Pain PointRisk from the Connector-Model ViewConfirm Early
01Product design issuesThe series name is locked but the USL / SSL pitch is chosen wrong or the mounting height does not match, so the sample will not fit the moduleFull part number, pitch step, available height
02Product quality issuesTermination and multi-point grounding drift in bending and vibration scenes, and intermittent signal faults appear in volumeWire gauge, shield-grounding plan, first-article confirmation
03After-sales issuesSeveral models share one series but with different pitch or suffix, and field replacements do not matchPlatform versions, batch labels, release records

Connector-Compatibility Visuals

IMAGES · 01

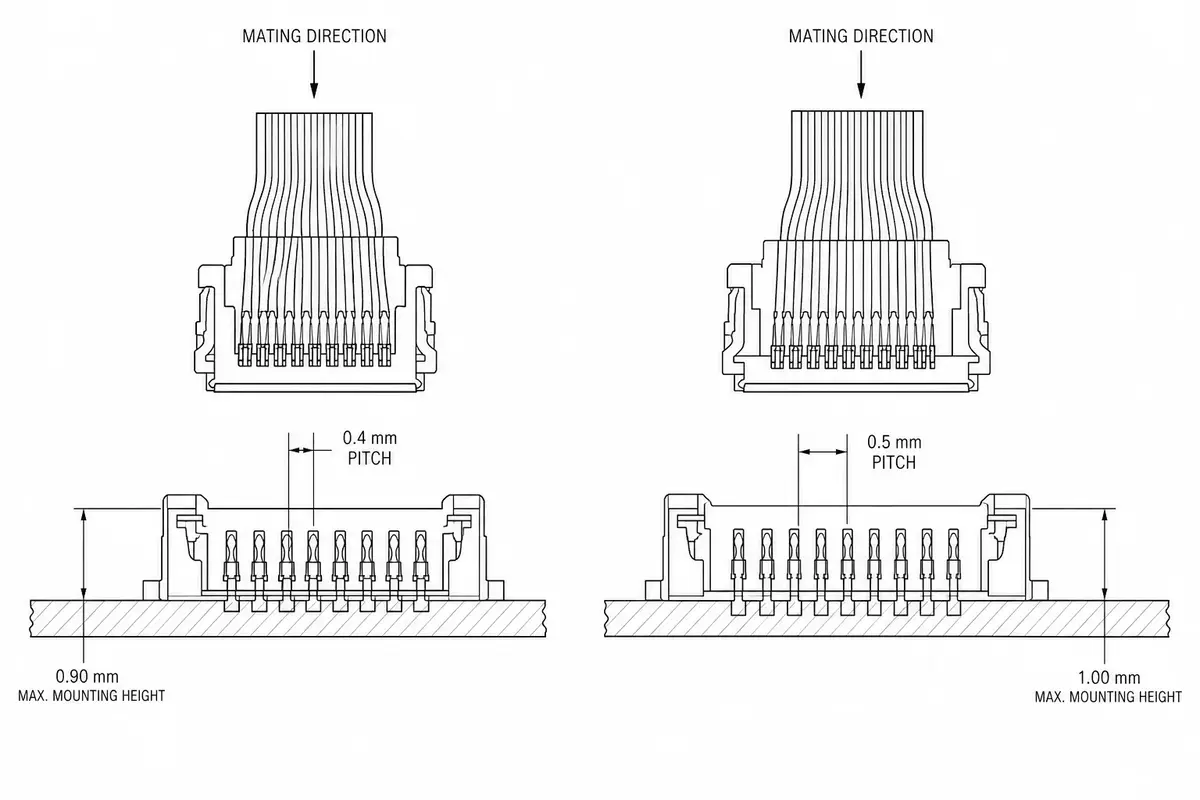

Non-branded KEL USL / SSL connector-review line-art: two fine-pitch micro-coax board connectors side by side comparing 0.4mm and 0.5mm pitch with low mounting-height dimension callouts and vertical mating-direction arrows
Project Image01

Non-branded KEL USL / SSL connector-review line-art: two fine-pitch micro-coax board connectors side by side comparing 0.4mm and 0.5mm pitch with low mounting-height dimension callouts and vertical mating-direction arrows

SEC · 05KEL Selection

KEL USL and SSL Selection Matrix

USL and SSL are separate KEL series, not interchangeable shorthand. The RFQ names one series and complete mating pair before pitch, height, cable size, positions, and ratings enter the harness definition.

KEL USL and SSL Selection MatrixROWS · 08
NOSelection FieldProject DecisionRelease Evidence
01Series identityUSL, SSL, or another exact KEL familyFull plug and receptacle P/N
02Contact pitchUse the pitch published for the selected seriesCurrent manufacturer series data
03PositionsChoose listed count and allocate every contactApproved pin-assignment table
04Wire compatibilityMatch AWG and construction to cable plugSeries termination specification
05Mating directionHorizontal or vertical style as selectedInstalled section view
06Mated heightUse exact variant geometry, not family nicknameEnclosure stack-up review
07Rated currentApply series value under stated manufacturer conditionsLoad allocation and P/N check
08Signal targetProtocol, impedance, lane map, and lengthProject channel-validation plan

First-Party Engineering References

SEC · 06Compatibility Risks

KEL Series Compatibility Failure Modes

KEL compatibility errors usually begin when series, orientation, or height is abbreviated in an RFQ. A correct pitch cannot compensate for the wrong mating family or cable termination range.

KEL Series Compatibility Failure ModesROWS · 06
NOFailure ModeSelection ErrorControl
01USL/SSL substitutionSeries names are treated as equivalentValidate manufacturer mating pair
02Orientation conflictHorizontal and vertical geometry is confusedModel exact installed direction
03Cable mismatchWire size is outside selected plug rangeApprove termination construction
04Stack-height interferenceVariant height is omitted from enclosure reviewCheck mated stack and tolerances
05Contact overloadSeries current is applied without contact allocationReview powered pins and derating inputs
06Unproven high-speed claimConnector data is applied to a different harness channelTest actual length, map, and fixture
SEC · 07Verification Plan

KEL-Compatible Harness Verification Plan

The release record proves exact KEL identity, termination, mapping, installed fit, and any project-specific channel requirement. Series ratings remain component data unless the complete assembly is validated.

KEL-Compatible Harness Verification PlanROWS · 07
NOVerificationMethodRelease Record
01Series and P/NCompare plug and receptacle to approved BOMIncoming identity evidence
02Wire rangeCheck AWG and construction against plug dataTermination compatibility approval
03Joint conditionMagnified conductor, dielectric, shield, and solder inspectionFirst-article record
04Pin assignmentContinuity and short test to released netlistPer-assembly result
05Mating geometryFit approved pair in representative enclosureHeight and access confirmation
06Electrical targetTest the released KEL pair, cable BOM, pin map, and length using the approved TDR, VNA, or system methodRecord mode, fixture, calibration or reference planes, frequency or rise-time range, environment, sample scope, result, and acceptance limits
07Variant changeRepeat selection review after series or suffix changeApproved revision record
SEC · 08Engineering Capability

Engineering Capability

Engineering review separates USL from SSL and fixes the selected part's mating, wire, grounding, height, and route boundary.

Engineering Capability

ENG

Confirm complete cable-side and board-side part numbers; never combine USL, SSL, or XSL pitch, AWG, mating, or height values.

ENG

Compare the selected catalog dimensions, mating direction, bundle size, cable exit, and bend space with the module layout.

ENG

For legacy or multi-model programs, identify which pitch, suffix, and platform revisions each approved sample represents.

Quality and Verification Highlights

QA

Inspect fine-wire termination, shield handling, multi-point grounding, connector alignment, and mounting height against the approved drawing.

QA

First-article checks verify pin assignment, dimensions, continuity, and project-defined signal or imaging requirements.

QA

Inspection and batch records trace to the same complete part references and revision; the KEL name alone proves no compatibility.

Evidence Chain

DETAIL

Variant and pitch confirmation records

Fix the full connector reference, pitch step, mating side, and current version boundary as the sample-review basis.

DETAIL

Height and structure review records

Record pitch, wire gauge, shielding, mounting height, and route conditions so samples stay aligned with the module space.

DETAIL

Sample and batch tracing

Keep sample confirmation, shipment labels, and batch files pointed at the same released version.

SEC · 09Files, Records, and Brand Boundary

Files, Records, and Brand Boundary

Credibility in a KEL-compatible project comes from traceable drawings, samples, and version records — not from unverified brand-authorization wording.

DETAIL

Connector reference records

The customer-specified connector series, pitch, variant, and mating relationship are recorded for later repeat orders.

DETAIL

Sample confirmation and inspection records

Sample confirmation plus appearance, continuity, and key-dimension checks correspond to the current version.

DETAIL

Batch labels and shipment files

Batch labels, carton marks, packing details, and agreed accompanying documents are supported.

DETAIL

Brand boundary note

KEL, USL, and SSL identify customer-specified connector families only; EDPcable does not claim to be KEL's agent, authorized assembler, or official partner.

Certifications / Records Visuals

IMAGES · 04
Micro-coaxial assembly document-control scene with records and labels secondary to the harness
Project Image01

Micro-coaxial assembly document-control scene with records and labels secondary to the harness

Micro-coaxial controlled record scene with compact harness sample foreground and document support
Project Image02

Micro-coaxial controlled record scene with compact harness sample foreground and document support

Micro-coaxial batch traceability archive with fine connector lot labels and cable sample visible
Project Image03

Micro-coaxial batch traceability archive with fine connector lot labels and cable sample visible

Micro-coaxial released-sample approval folder beside shielded harness and compact module mockup
Project Image04

Micro-coaxial released-sample approval folder beside shielded harness and compact module mockup

SEC · 10FAQ

FAQ

Can you build micro-coax cable assemblies compatible with KEL USL / SSL connectors?

Yes, after complete cable-side and board-side part numbers, suffix, mating, pin count, supported wire, grounding, height, and route are confirmed. Compatible manufacturing does not imply KEL authorization.

Are KEL USL and SSL interchangeable?

No. USL is 0.4mm pitch and SSL is 0.5mm pitch, with different wire, mating, and height conditions. Confirm both full part numbers against the KEL catalog and customer drawing.

How is this page different from the 0.25mm Pitch micro-coax page?

Use this page for fixed USL or SSL part numbers. Use the 0.25mm page for KEL XSL or while pitch, wire gauge, and connector family are still being selected.

What should we prepare early for volume- and height-sensitive scenes like camera modules?

Provide complete part numbers, available height, mating direction, cable exit, bend radius, retention points, and a route drawing. Fit is checked against the selected variant.

Can you supply original-maker connectors or authorization files?

No KEL authorization or agency claim is made. Original-part requirements belong in the BOM; delivery follows the confirmed materials and drawings.

SEC · 11Trademark Notice

Trademark and Brand Notice

KEL is a trademark of KEL Corporation; USL, SSL, and XSL identify its connector series. EDPcable independently manufactures compatible cable assemblies and claims no agency, authorization, distribution, or official cooperation. Compatibility and delivery follow the complete part numbers, customer-approved drawings, materials, samples, and revisions.
