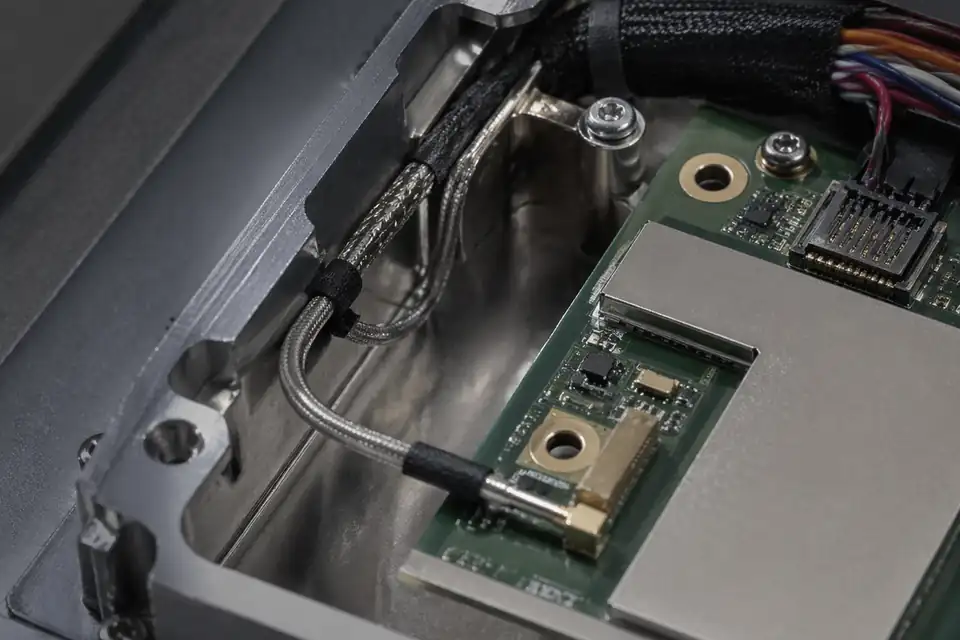

High-shielding micro-coaxial interconnect inside a high-interference device

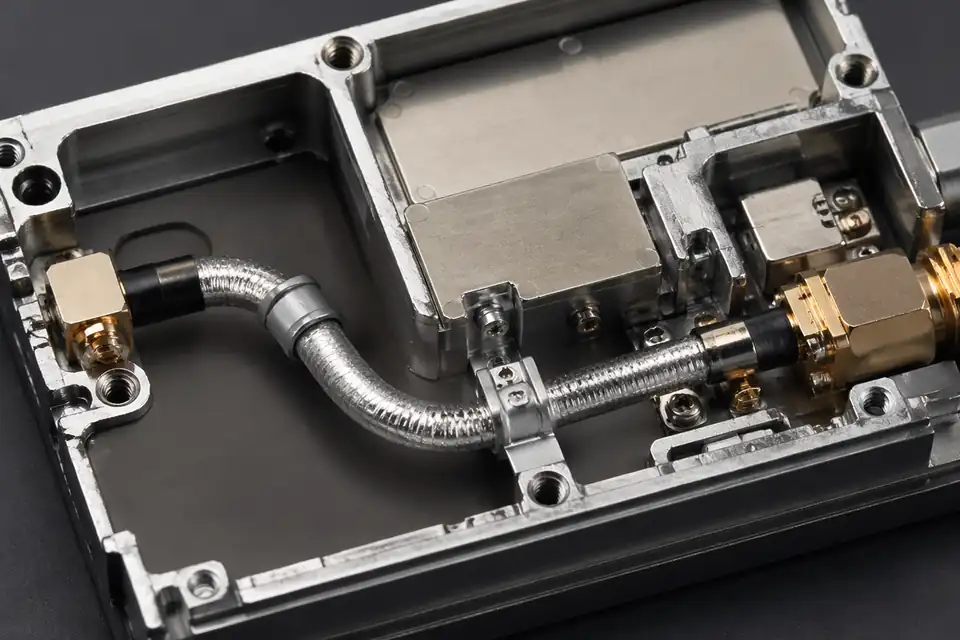

High-shielding micro-coaxial interconnect inside a compact RF path module

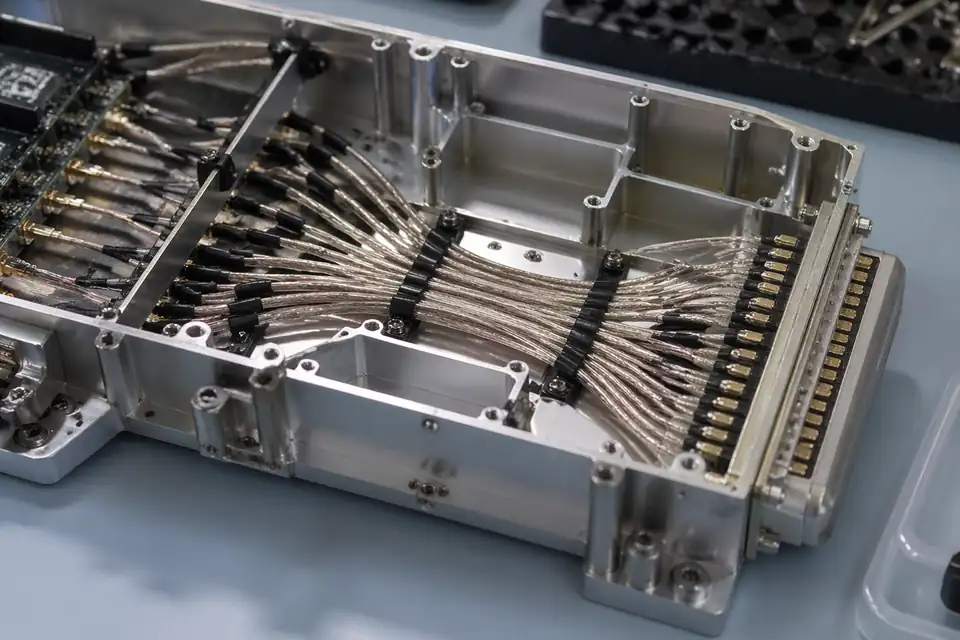

High-shielding micro-coaxial interconnect inside a precision signal module

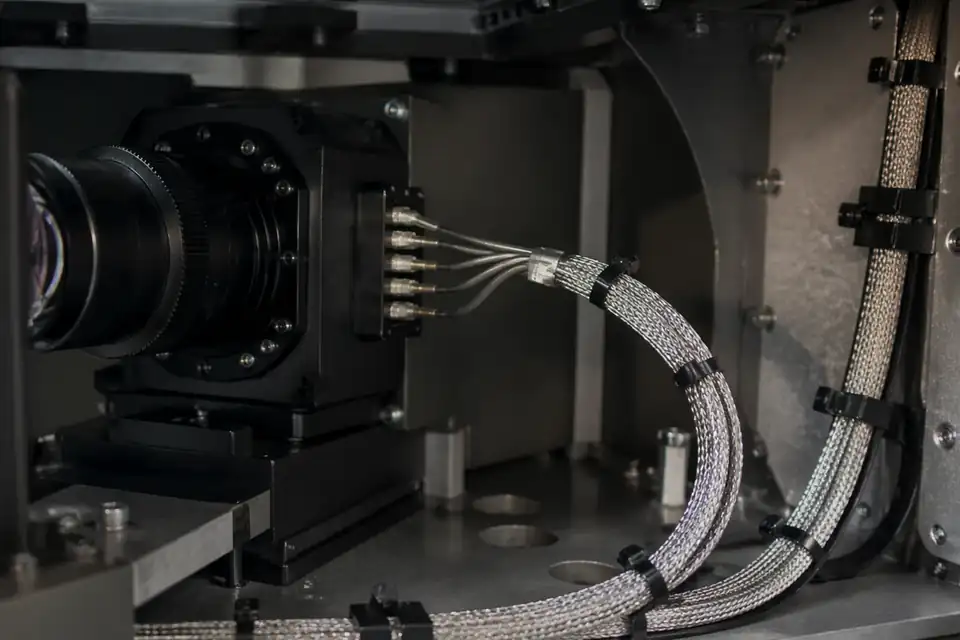

High-shielding micro-coaxial interconnect inside an industrial imaging system

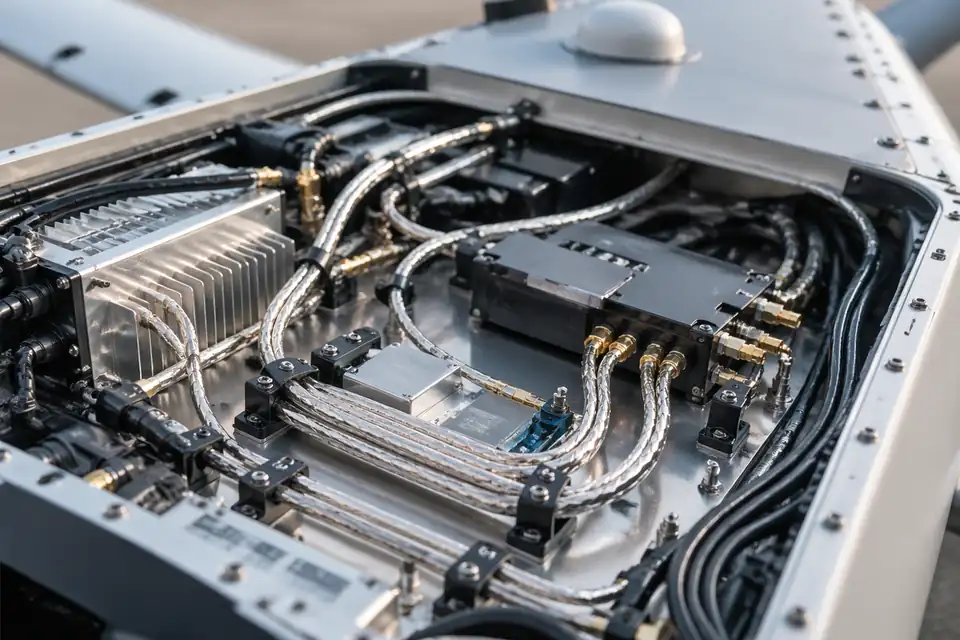

High-shielding micro-coaxial interconnect inside an unmanned-system communications module

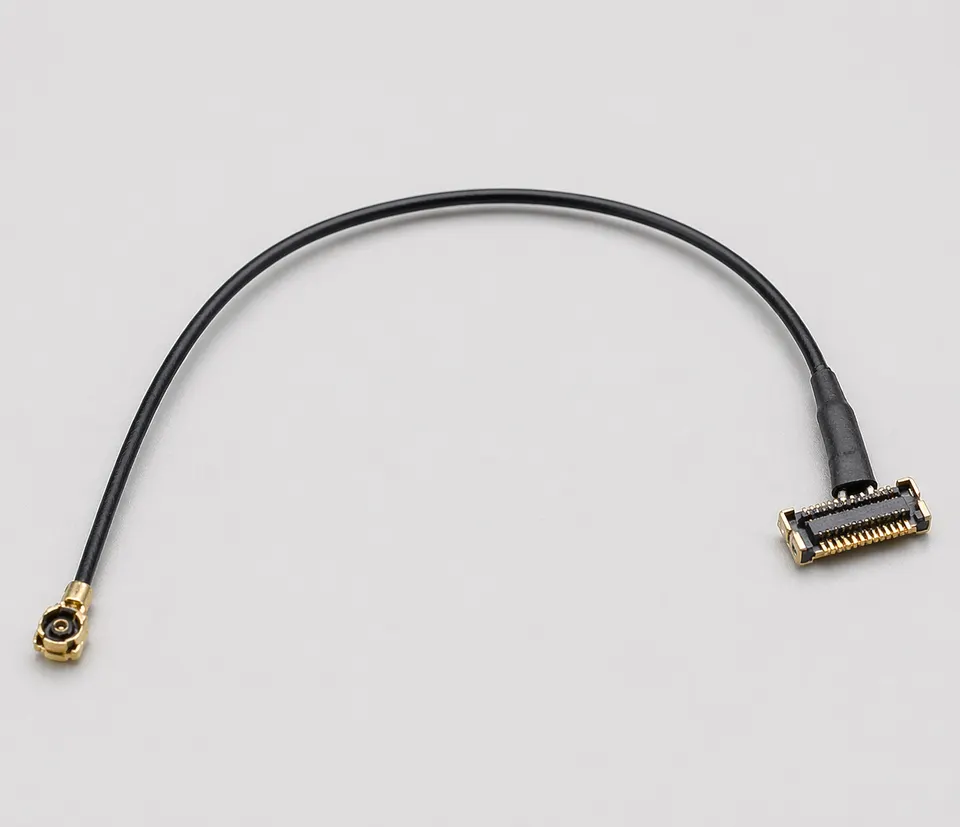

High-Shielding Micro-Coax Design Matrix
Shield performance depends on the entire return path: cable construction, connector shell, ground contacts, transition geometry, and termination at both ends. A shield label alone does not define system EMC behavior.
| NO | Shield Variable | Required Project Decision | Drawing or BOM Evidence |
|---|---|---|---|
| 01 | Cable shield | Individual coax shields, overall shield, or combined structure | Cable construction specification |
| 02 | Connector shell | Shell coverage and mating-shell continuity | Exact connector series drawing |
| 03 | Ground contacts | Count and distribution around active signal lanes | Pin-assignment and ground map |
| 04 | End-A termination | Shield bond, drain, shell, or pigtail treatment | Termination section view |
| 05 | End-B termination | Symmetric or intentionally different grounding boundary | Second-end grounding detail |
| 06 | Transition length | Maximum exposed shield and conductor geometry | Controlled strip dimensions |
| 07 | Installed route | Distance from switching nodes and discontinuities | Device routing overlay |
| 08 | System boundary | Cable check versus enclosure-level EMC validation | Responsibility and test matrix |
First-Party Engineering References
- I-PEX micro-coaxial and twinaxial overview
Defines shielding, pinout, insertion loss, return loss, cable length, and termination as linked selection variables.
Shield and Return-Path Failure Modes
Most shielding defects occur at transitions rather than along an intact coax section. The review therefore follows shell contact, drain treatment, exposed length, and the enclosure return path.
| NO | Failure Mode | Physical Mechanism | Engineering Control |
|---|---|---|---|
| 01 | Shield discontinuity | Shell or braid bond omitted at one transition | Show every shield termination on the drawing |
| 02 | Pigtail inductance | Long drain path degrades high-frequency return behavior | Limit geometry through project SI review |
| 03 | Ground-loop sensitivity | Both ends bonded without system grounding intent | Confirm chassis and signal-ground architecture |
| 04 | Local coupling | Unshielded transition crosses a noisy internal route | Control exposure and installed separation |
| 05 | Shell contact instability | Incomplete mating or contaminated contact surfaces | Inspect lock position and shell engagement |
| 06 | False EMC conclusion | Cable-only result applied to the complete device | Keep harness and system acceptance separate |
Shielding Verification and Evidence Plan
The release plan starts with construction evidence and adds electrical or EMC measurements only at the agreed boundary. Test method, fixture, frequency range, sample scope, and pass limits must be stated together.
| NO | Check | Defined Method | Resulting Evidence |
|---|---|---|---|
| 01 | Shield construction | Inspect layer stack and termination against section drawing | First-article inspection record |
| 02 | Shell continuity | Measure agreed shell-to-shell or shell-to-ground path | Resistance result with endpoints |
| 03 | Exposed transition | Dimensional inspection at both connector exits | Measured transition record |
| 04 | Ground map | Compare completed assembly to released netlist | Continuity report by ground node |
| 05 | Transfer behavior | When required, test with the agreed fixture and termination boundary | Record excitation, frequency range, calibration or reference plane, specimen orientation, sample scope, measured data, and acceptance limit |
| 06 | System EMC | Customer validates installed device and enclosure | Device-level compliance result |
| 07 | Change control | Re-review cable, shell, ground, or route substitutions | Approved deviation or revision |
