Patient Monitoring Interconnects

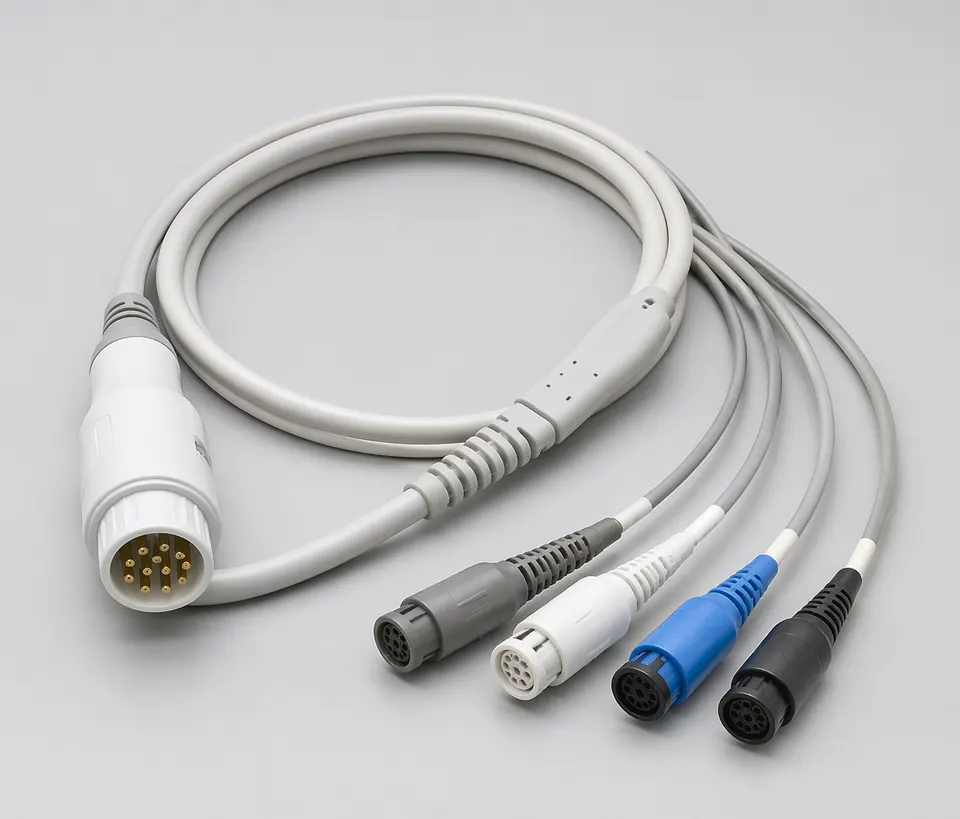

Custom Patient Monitoring Cable Assemblies
For device-side and host-side interconnects in bedside and portable monitoring equipment
EDPcable supports device-side and host-side cable assemblies inside or at the equipment interface of bedside monitors, portable monitors, and vital-sign systems. Confirm connector mapping, branch structure, labels, installation limits, device revision, and customer-specified electrical and environmental checks together. Patient-contact ECG trunk cables and lead-wire sets follow the separate ECG lead-wire direction.
Quick Links
QUICK ACCESSStart with the sections closest to the project structure, interface requirements, and validation scope.
Patient Monitoring Cable Product Overview
Patient-monitoring cable programs work best when the device context is already clear and the next review can focus on connector mapping, labeling rules, branch structure, revision scope, and traceable delivery before sampling.
| NO | Item | Typical Range or Meaning |
|---|---|---|
| 01 | Typical Devices | Bedside monitors, portable monitors, vital-sign host equipment, monitor accessory interfaces |
| 02 | Common Structures | Multi-core cables, branched assemblies, sensor-to-host links, labeled sub-leads |
| 03 | Key Inputs | Connector mapping, pin definition, labeling rules, branch structure, revision scope |
| 04 | Use Focus | Identification clarity, repeated connection, customer-defined cleaning exposure, replacement fit |
| 05 | Quality Focus | Batch consistency, file correspondence, labeling stability, long-term traceability |
| 06 | Release Basis | Connector data, mapping definition, labeling logic, device revision, and sample boundaries |
Customer Pain Points
Patient-monitoring cable projects often sound straightforward once the product or route category is known. In real RFQ and sample work, delays usually appear in route fit, structure judgement, and revision control rather than in the label alone.
| NO | Customer Pain Point | Typical Risk | What Needs Early Confirmation |
|---|---|---|---|
| 01 | Product design issues | The connector path, structure, or local fit still does not truly match the patient-monitoring cable build, so the sample becomes only a temporary reference | Connector references, route path, structure boundaries, and installation space |
| 02 | Product quality issues | Execution, local fit, or batch consistency drifts across repeated patient-monitoring cable builds | Structure definition, quality focus, and revision linkage |
| 03 | Lead-time issues | Missing inputs force repeated sample loops and slow quotation, release, and batch timing | Connector data, route notes, project stage, quantity, and timing |
| 04 | After-sales issues | It becomes difficult to tell whether the issue came from structure, revision, or installed conditions | Drawing files, sample approval records, batch labels, and shipment records |
| 05 | Complaint-handling issues | Revision boundaries are unclear, so issue tracing stays slow | Revision confirmation, batch correspondence, and inspection records |
| 06 | Pricing issues | A broad request turns into repeated pricing changes once real fit constraints surface | Structure complexity, material expectations, quantity, and delivery boundaries |
Product Applications
Patient-monitoring harnesses in this scope serve the monitor or host equipment. Device-side mapping, branch identification, installed routing, and revision control define the build; patient-contact ECG lead sets are reviewed separately.
| NO | Application Scene | Scene Focus | Typical Concerns |
|---|---|---|---|
| 01 | Bedside-monitor systems | mapping discipline, branch structure, and long-run batch consistency | label clarity, connector matching, and version-linked records |
| 02 | Portable-monitor devices | compact structure, route flexibility, and repeated handling | branch length, fixing method, and replacement fit |
| 03 | Monitor accessory interfaces | device-side ports and replaceable host connections | pin mapping, connector identification, and replacement boundaries |
| 04 | Vital-sign sensor links | device-side matching and stable branch execution | signal mapping, structure definition, and traceable delivery |
| 05 | Replacement and upgrade programs | matching old parts to the active medical-device revision | revision scope, usable boundaries, and after-sales tracing |
Application Scene Visuals
IMAGES · 05

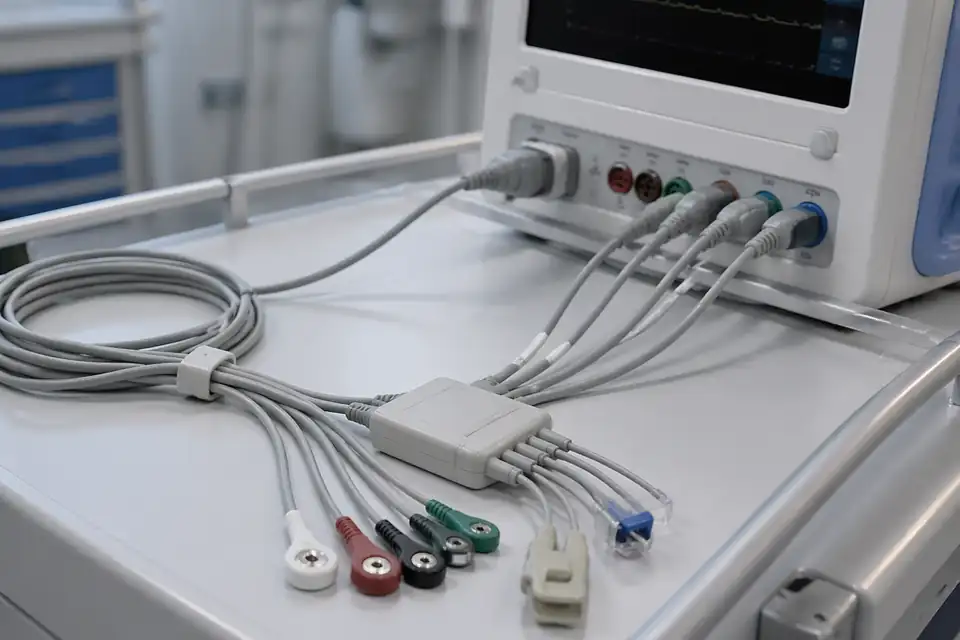

Patient-monitoring cable assembly in bedside monitoring equipment context

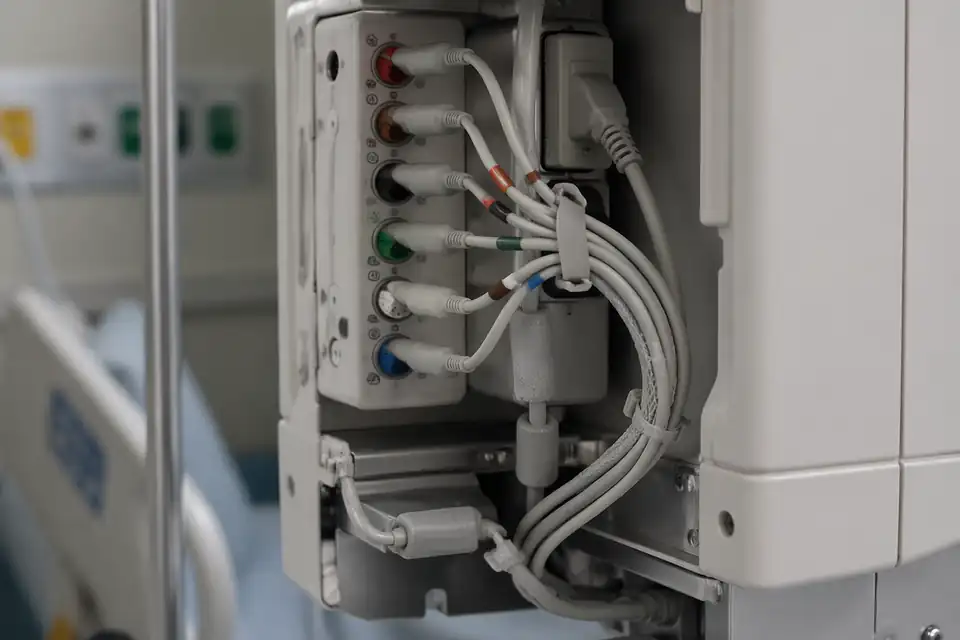

Patient-monitoring cable assembly in a bedside unit with device-side connector routing

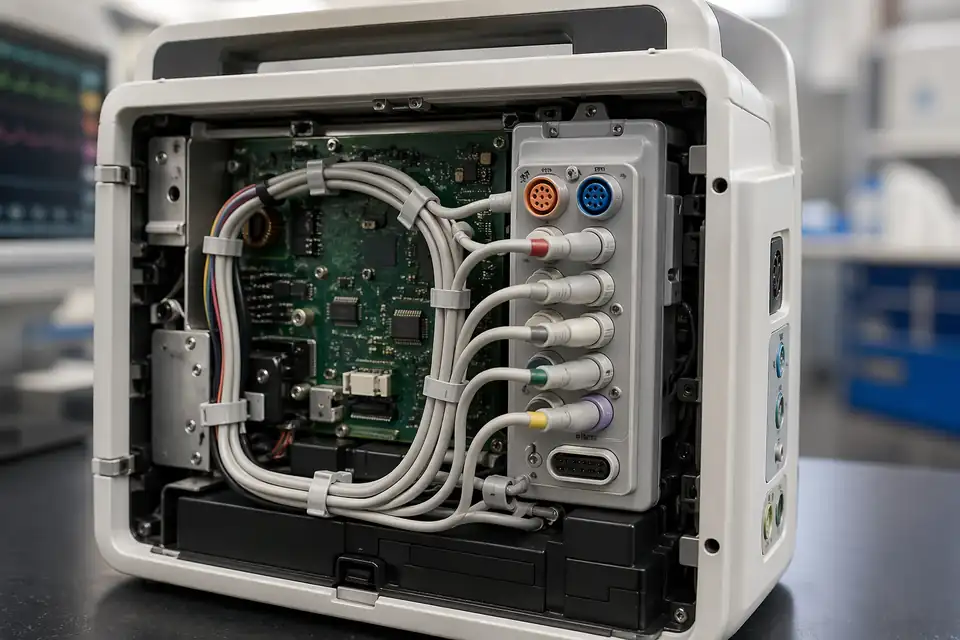

Patient-monitoring cable assembly inside a portable patient monitor

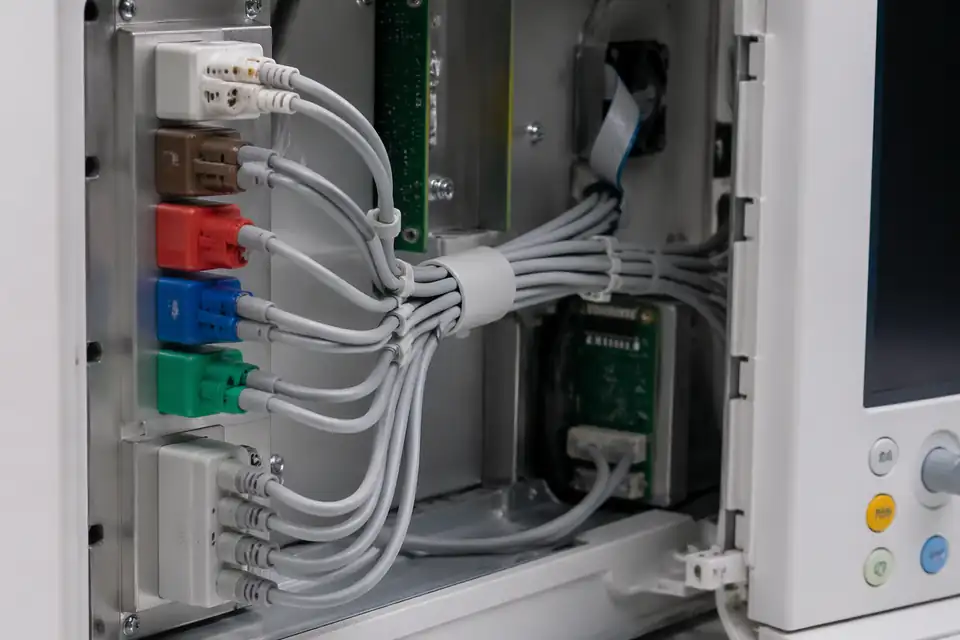

Patient-monitoring cable assembly inside a multi-parameter monitoring unit

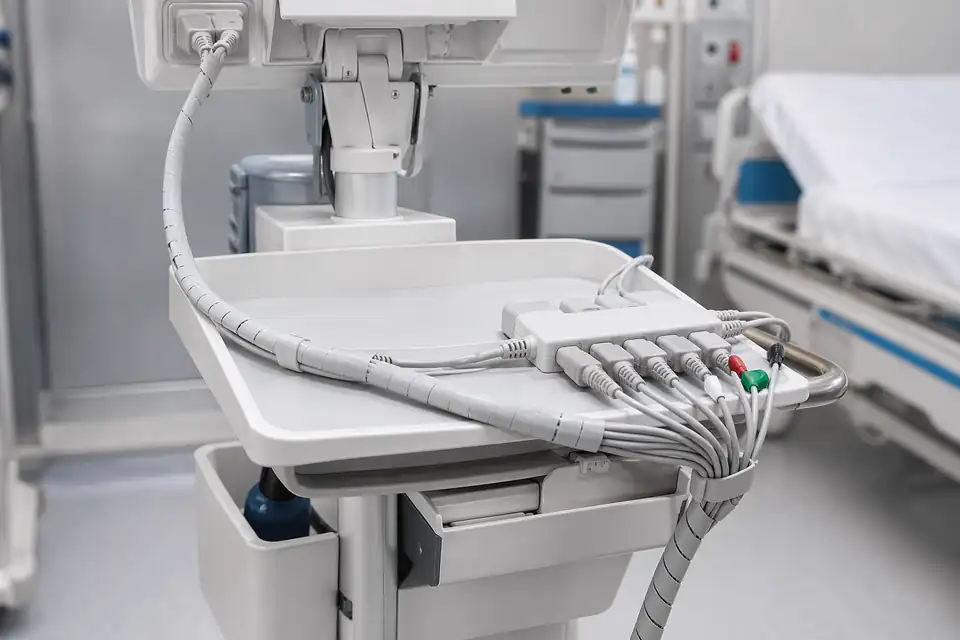

Patient-monitoring cable assembly in a mobile monitoring cart environment
Patient Monitor Harness Design Definition Matrix
Define the equipment-side harness from the monitor interface map, accessory branches, identification scheme, and active device revision. This assembly definition supports the device program but does not establish patient safety or clinical performance on its own.
| NO | Design input | Harness release decision | Controlled evidence |
|---|---|---|---|
| 01 | Host and accessory interface map | List every monitor-side connector, accessory endpoint, pin assignment, unused circuit, and allowed keying orientation before branch design begins. | Approved interface schedule tied to the device revision and the customer-owned functional architecture. |
| 02 | Branch topology and length datum | Define trunk origin, branch nodes, breakout direction, free length, reference datums, and routing allowance for the actual monitor enclosure. | Released harness drawing with branch dimensions and installation-view references. |
| 03 | Identification and accessory coding | Assign label text, color, symbol, location, orientation, and replacement identifier from the customer-approved monitoring accessory scheme. | Label artwork and inspection master associated with the applicable market and device version. |
| 04 | Connector and termination selection | Freeze manufacturer part numbers, terminal contacts, seals, backshells, and mating references against the purchasing BOM rather than generic connector names. | Customer-approved BOM plus current component drawings for each terminated interface. |
| 05 | Shield and ground architecture | State which circuits are shielded, where drain conductors terminate, whether a shield is continuous, and which chassis or signal reference owns each bond. | Grounding diagram reviewed within the monitor electrical design, not inferred from cable appearance. |
| 06 | Cleaning and handling exposure | Identify customer-approved cleaning agents, wipe frequency, handling zones, storage conditions, and label surfaces that the equipment-side harness may encounter. | Material compatibility requirements and device-owner exposure plan referenced by the harness specification. |
| 07 | Revision and sample boundary | Record which device build, interface map, connector set, labels, and dimensional baseline the first article represents before samples are compared. | Signed sample record linking physical units to drawing, BOM, and device revision identifiers. |
First-Party Engineering References
- IEC 60601-1 general requirements for medical electrical equipment
Device basic safety and essential performance are evaluated by the equipment manufacturer; this reference only frames the system inputs that can flow into the monitor harness specification.
- ISO 14971:2019 medical-device risk management
The device risk file may allocate controls to connector mapping, identification, cleaning exposure, or service replacement, while risk acceptability remains with the legal manufacturer.
Patient Monitor Harness Failure-Mode Review
Review failures at the cable-assembly boundary and pass any possible clinical or equipment consequence into the customer's device risk process. The table does not assign universal severity or probability values.
| NO | Harness failure condition | Assembly-level prevention or detection | Device-program boundary |
|---|---|---|---|
| 01 | Accessory branch is mapped to the wrong host circuit | Use a revision-specific point-to-point schedule, keyed fixture definition, and first-article continuity report that identifies every branch endpoint. | The monitor owner evaluates resulting readings, alarms, or accessory behavior during device verification. |
| 02 | Branch label becomes unreadable or moves from its intended position | Control artwork, substrate, print process, placement window, and the project-defined cleaning exposure before label acceptance. | Clinical identification adequacy and use-related risk are confirmed in the finished monitoring system. |
| 03 | Breakout junction carries installation or service load | Align branch geometry and local support with the enclosure route, then apply only the pull or handling check stated in the approved plan. | Service frequency and misuse assumptions are supplied by the device manufacturer rather than estimated by the harness supplier. |
| 04 | Shield or drain termination differs between approved samples and production | Show each bond endpoint on the drawing and inspect shield preparation plus termination against the released construction sample. | EMC and signal-performance conclusions require system testing in the intended monitor configuration. |
| 05 | Cleaning exposure changes jacket, overmold, or identification condition | Build with the specified material set and evaluate coupons or assemblies only under the customer-defined agent, duration, and inspection criteria. | Suitability for the complete device cleaning protocol is approved and documented by the device owner. |
Patient Monitor Harness Verification Plan
Complete the harness release with traceable dimensional, mapping, identification, and construction evidence. Device-level safety, alarm, EMC, and clinical functions remain outside the cable acceptance record.
| NO | Verification item | Method and acceptance basis | Resulting record |
|---|---|---|---|
| 01 | Point-to-point branch mapping | Test every specified conductor between named host and accessory endpoints against the active mapping schedule, including required open circuits. | Serialized or lot-linked continuity result referencing the map revision. |
| 02 | Branch geometry and installed reach | Measure released length datums and compare a first article in the customer fixture, enclosure, or approved dimensional model. | Dimensional inspection sheet plus fit-review disposition for the sampled device build. |
| 03 | Accessory identification | Compare text, color, symbol, orientation, position, and adhesion criteria with the approved artwork and exposure requirement. | Label inspection record linked to the intended language or market configuration. |
| 04 | Terminations and strain transitions | Inspect contact seating, crimp or solder condition, seals, overmolds, and branch support using the drawing and invoked workmanship criteria. | First-article visual record and any project-defined mechanical test result. |
| 05 | Shield and ground continuity | Verify only the specified shield paths and bond endpoints with the method, resistance limit, and fixture named by the customer. | Electrical report that records setup, limits, measured result, and drawing revision. |
| 06 | Release-package correspondence | Reconcile sampled parts, connector lots, labels, drawing, BOM, deviations, and approval status before production release. | First-article package and configuration index retained under the agreed traceability plan. |
Engineering Capability
Device-side monitoring harness review ties connector mapping, branch lengths, labels, installed routing, host-equipment revision, and acceptance criteria to one released drawing. Patient-contact lead sets require their own electrode and lead-wire definition.
Engineering Capability
Review route path, connector references, and local fit together for the patient-monitoring cable build.
Quality and Verification Highlights
Watch local-fit zones, connector exits, and route transitions specific to patient-monitoring cable installs.
Evidence Chain
Controlled drawings for pin mapping and labeling rules
Fix connector references, pin mapping, labeling rules, branch structure, and the active revision boundary into one released drawing basis, so samples do not slowly drift away from the formal release.
Branch-structure and identification review records
Use branch lengths, numbering logic, and installation review records to confirm the current sample really matches the usage boundary on the patient-monitoring device side.
Sample approval and batch correspondence files
Keep sample approval records, key test results, batch labels, and shipment documents tied to the same released definition, so later multi-revision platform transitions stay controllable.
Files and Batch Support
Patient-monitoring cable work has its own document layer around route and fitting boundaries. Cross-family file control, batch traceability, and certification practice are summarised in the Related Capability Pages.
Patient-monitoring cable route and fitting-boundary records
Capture the route path, local fit, and installation-space limits that are specific to the patient-monitoring cable build so later structural differences can be traced back to the right layer of change.
Certifications / Records Visuals
IMAGES · 04
Medical cable assembly compliance and batch-record scene with documents secondary to the harness
Medical cable compliance record scene with harness sample foreground and controlled documents
Medical cable batch traceability and sample approval archive in clean workspace
Medical released project folder with connector lot labels and sample cable support context
FAQ
Can you build patient-monitoring harnesses from old samples or old parts?
Yes. Existing samples and legacy parts help, but the active pin mapping, labeling rules, branch structure, and device revision still need to be confirmed before the sample can represent the released build.
What is the minimum input for a patient-monitoring quotation?
Send the device type, connector references, pin mapping, branch structure, labeling logic, project stage, and expected quantity.
Why do patient-monitoring programs need more than connector model and cable length?
Because mapping logic, labeling, branch relationships, and revision scope often decide whether the harness can actually be released and supported over time.
Can one patient-monitoring harness cover several device versions?
Sometimes, but only if mapping definition, branch geometry, labeling rules, and revision boundaries stay inside the same approved definition.
Can review start before the full drawing package is complete?
Yes. Early review can start from connector references, mapping logic, branch context, and current revision notes, then tighten as the file package becomes clearer.
