Industrial Monitor LVDS Interconnects
Custom LVDS Cable Assemblies for Industrial Monitor Projects
For industrial monitors, HMI terminals, and panel-PC displays that still rely on stable LVDS routing
EDPcable supports custom LVDS cable assemblies for industrial monitors, control-terminal displays, panel-PC modules, and other programs where differential route stability, shielding behaviour, installation fit, and revision-linked file control all matter. The challenge is not getting one sample made. It is making sure connector matching, differential path, shielding structure, and installed-fit conditions all stay aligned with the active industrial-display platform.
Quick Links
QUICK ACCESSStart with the sections closest to the project structure, interface requirements, and validation scope.
Industrial Monitor LVDS Product Overview
Industrial-monitor LVDS programs work best when the equipment context is already clear and the next review can focus on connector definition, differential route, shielding logic, installation fit, and active revision boundaries before sampling.
| NO | Item | Typical Range or Meaning |
|---|---|---|
| 01 | Typical Devices | Industrial monitors, HMI terminals, panel-PC displays, industrial display modules |
| 02 | Common Structures | Board-to-panel LVDS harnesses, shielded internal routed assemblies, compact display links |
| 03 | Key Inputs | Connector references, pin mapping, differential path, shielding notes, revision scope |
| 04 | Use Focus | Stable signal behaviour, installation fit, released drawing correspondence, repeat orders |
| 05 | Quality Focus | Differential consistency, shielding execution, record clarity, batch stability |
| 06 | Release Basis | Connector data, route notes, shielding logic, and platform-version boundaries |
Customer Pain Points
Industrial-monitor LVDS projects often sound straightforward once the product or route category is known. In real RFQ and sample work, delays usually appear in route fit, structure judgement, and revision control rather than in the label alone.
| NO | Customer Pain Point | Typical Risk | What Needs Early Confirmation |
|---|---|---|---|
| 01 | Product design issues | The connector path, structure, or local fit still does not truly match the industrial-monitor LVDS build, so the sample becomes only a temporary reference | Connector references, route path, structure boundaries, and installation space |
| 02 | Product quality issues | Execution, local fit, or batch consistency drifts across repeated industrial-monitor LVDS builds | Structure definition, quality focus, and revision linkage |
| 03 | Lead-time issues | Missing inputs force repeated sample loops and slow quotation, release, and batch timing | Connector data, route notes, project stage, quantity, and timing |
| 04 | After-sales issues | It becomes difficult to tell whether the issue came from structure, revision, or installed conditions | Drawing files, sample approval records, batch labels, and shipment records |
| 05 | Complaint-handling issues | Revision boundaries are unclear, so issue tracing stays slow | Revision confirmation, batch correspondence, and inspection records |
| 06 | Pricing issues | A broad request turns into repeated pricing changes once real fit constraints surface | Structure complexity, material expectations, quantity, and delivery boundaries |
Product Applications
This route is not only a category label. In practice, industrial-monitor LVDS work usually appears in device programs where fit, route logic, and revision scope all matter. The scenes below are the most common application contexts.
| NO | Application Scene | Scene Focus | Typical Concerns |
|---|---|---|---|
| 01 | Industrial control terminals | connector matching and installed fit inside constrained terminal structures | local clearance, fixing method, and EMI boundaries |
| 02 | Panel-PC display modules | differential route allocation across compact internal layouts | length control, route geometry, and version fit |
| 03 | Factory-automation HMI units | repeatable batch execution with stable file correspondence | drawings, inspection output, and batch records |
| 04 | Outdoor industrial displays | protected structure and transport-aware delivery handoff | packaging, installed protection, and shipment scope |
| 05 | Replacement and upgrade programs | matching legacy LVDS routes to the active platform definition | usable scope, sample confirmation, and after-sales tracing |
Application Scene Visuals
IMAGES · 05
LVDS route inside an industrial control terminal display with EMI-aware installation

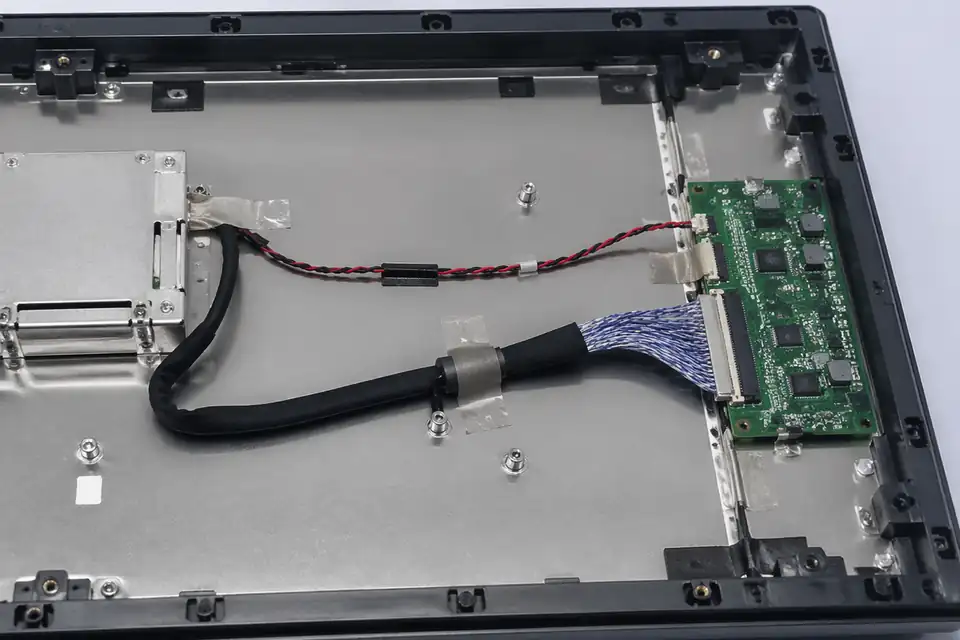

LVDS route inside a panel-PC display module with controlled length distribution

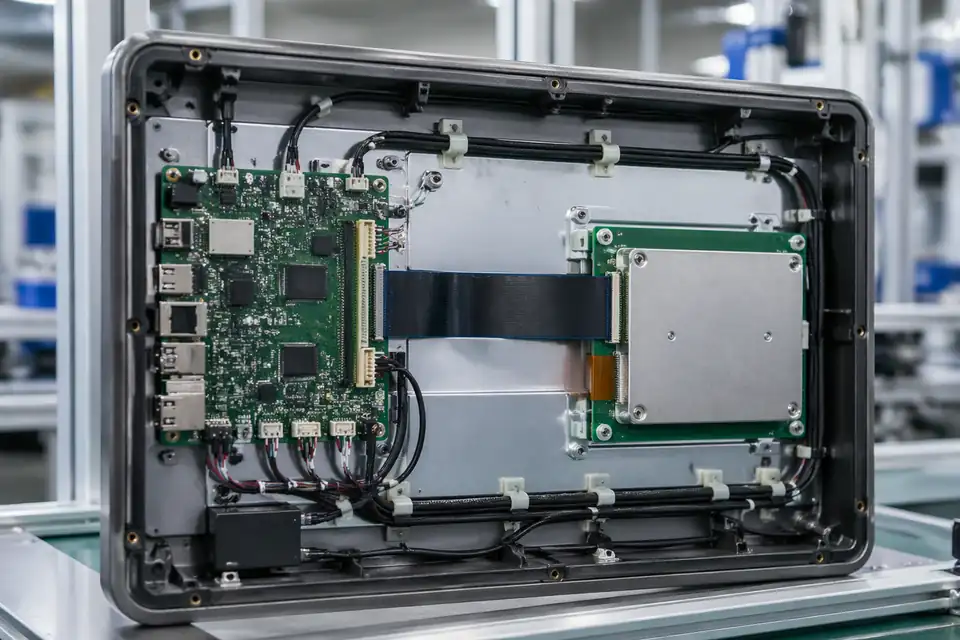

LVDS route inside a factory automation HMI display unit

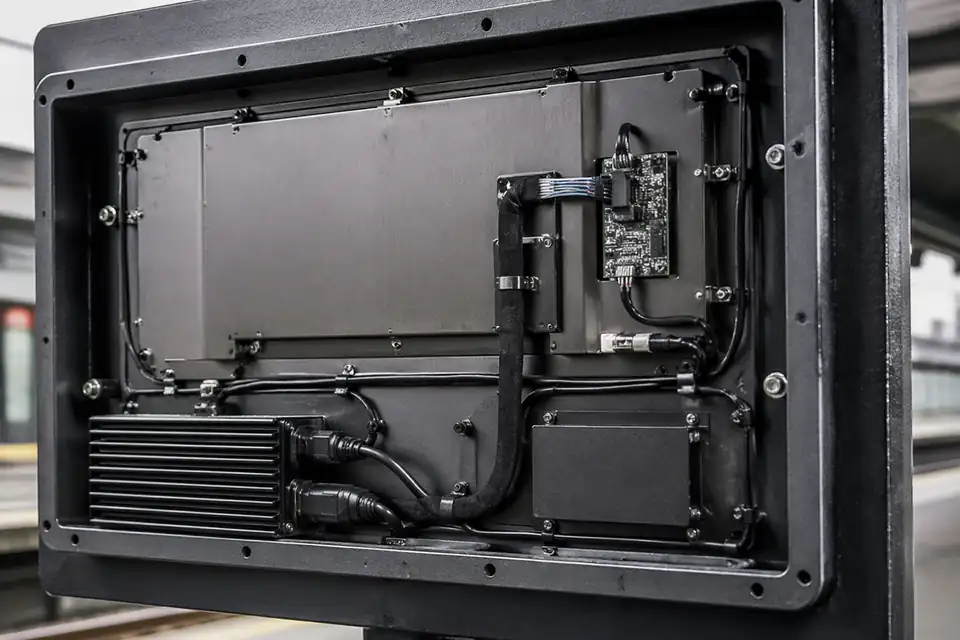

LVDS route inside an outdoor industrial display device with protected routing

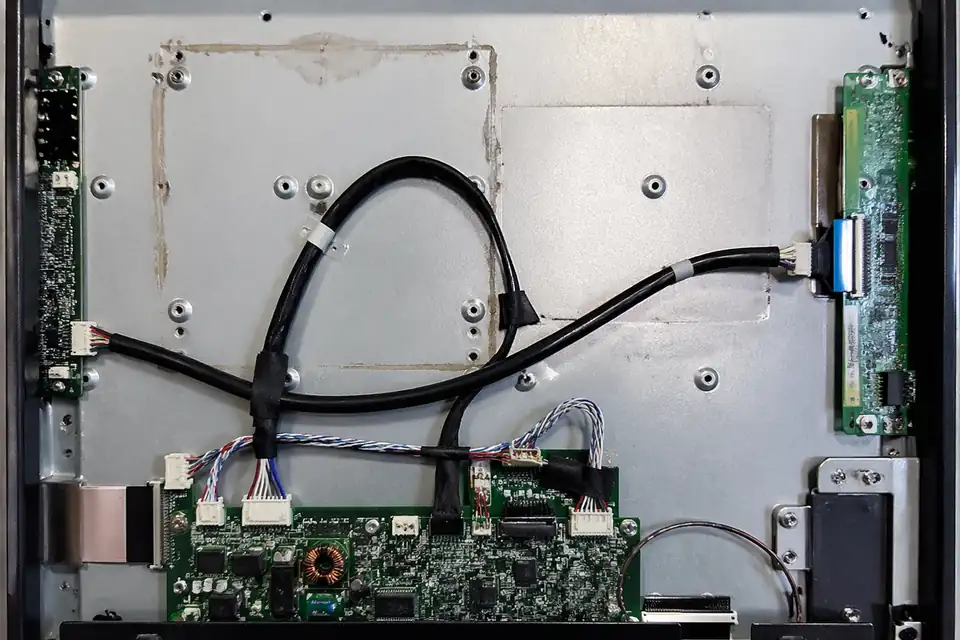

LVDS replacement-project context inside an industrial monitor
Set LVDS Requirements From the Industrial Monitor
Long service life and harsh-use expectations need concrete inputs: named monitor variants, controller-panel combinations, enclosure routes, field-replacement practices, and equipment qualification profiles.
| NO | Program dimension | Monitor-specific input | Harness requirement |
|---|---|---|---|
| 01 | Display configuration | Controller, scaler, and panel revision set | Controlled connector and signal mapping |
| 02 | Enclosure architecture | Metalwork, vents, service door, and mounting points | Protected route and fixed support locations |
| 03 | Environmental range | Specified operating and storage exposures | Qualified insulation and attachment materials |
| 04 | Mechanical duty | Machine vibration, transport, and maintenance handling | Retention and strain-relief definition |
| 05 | Noise sources | Drives, relays, power converters, and external wiring | Pair, shield, and separation plan |
| 06 | Field replacement | Access direction, tools, and technician sequence | Service loop, labels, and handling notes |
| 07 | Lifecycle control | Forecast, approved alternates, and change-notice needs | BOM status reviewed through production life |
First-Party Engineering References
- JAE FI-X series product page
Original connector-family data relevant when an industrial monitor BOM specifies FI-X; other interfaces require their own sources.
Industrial Monitor Reliability Review
Reliability claims should be replaced by testable mechanisms at known locations, with the harness treated as part of the assembled monitor rather than an isolated component.
| NO | Field failure | Plausible mechanism | Engineering containment |
|---|---|---|---|
| 01 | Display resets near machinery | Routing couples energy from a known switching load | Separate route and validate equipment EMC |
| 02 | Intermittence after transport | Unsupported cable mass transfers transport loads into the mating interface | Restrain the bundle at defined datums |
| 03 | Insulation wear in service | Repeated access drags cable across enclosure hardware | Guard the edge and control service motion |
| 04 | Replacement cannot be installed | Field unit uses another panel or connector revision | Applicability label identifies exact monitor options |
| 05 | Early material degradation | Actual exposure exceeds the approved temperature, humidity, chemical, or UV profile | Qualify materials against the named exposure, duration, and post-test criteria |
Industrial Monitor Qualification Matrix
Qualification combines supplier-level electrical inspection with enclosure-level operation, mechanical exposure, EMC testing, and a service trial drawn from the monitor's approved plan.
| NO | Qualification item | Test boundary | Acceptance record |
|---|---|---|---|
| 01 | Incoming configuration | Connector, wire, shield, label, and dimension inspection | Lot matches released BOM and print |
| 02 | Installed electrical function | Final board-panel set under specified operating modes | No defined display or control fault |
| 03 | Environmental operation | Run the named temperature and humidity profile in the enclosure | Measured results and post-test inspection meet the cited requirement and test IDs |
| 04 | Mechanical robustness | Specified transport or vibration exposure while installed | No damage, loosening, or discontinuity |
| 05 | EMC performance | Use production-intent grounding with representative machine loads | Measured emissions and immunity results meet the named limits for the approved test configuration |
| 06 | Serviceability | Authorized replacement sequence using intended access | Visual inspection, lock engagement, continuity, and display-function checks pass after replacement |
Engineering Capability
Engineering value in an industrial-monitor LVDS page comes from tying the panel and control-board interfaces to enclosure clearance, retention, shielding, service access, and the active equipment revision before release. Cross-family engineering review, drawing control, and documentation practice are covered in the Related Capability Pages below.
Engineering Capability
Review connector references, panel position, route retention, shielding and grounding, service access, and enclosure clearance together for the active industrial-monitor version.
Quality and Verification Highlights
Watch connector exits, clamp points, service-clearance zones, and panel-version changes specific to industrial-monitor installations.
Evidence Chain
Controlled pin-map and shielding drawing
Keep the connector references, pin mapping, differential-pair structure, shielding definition, and active revision boundary on the same released drawing basis so samples and production do not drift apart.
Installed-space and validation review
Record local clearance, retention, and installation conditions so the current sample can be checked against the actual industrial-display operating boundary.
Sample and batch correspondence
Tie sample approval, agreed test results, batch labels, and shipment records to the same released definition so later platform-version changes remain controlled.
Files and Batch Support
Industrial-monitor LVDS work has its own document layer around route and fitting boundaries. Cross-family file control, batch traceability, and certification practice are summarised in the Related Capability Pages.
Industrial-monitor LVDS route and fitting-boundary records
Capture the route path, local fit, and installation-space limits that are specific to the industrial-monitor LVDS build so later structural differences can be traced back to the right layer of change.
Certifications / Records Visuals
IMAGES · 04
LVDS cable assembly with controlled records and identification labels
LVDS controlled release records with sample cable foreground and document sleeves
LVDS batch traceability archive with connector lot cards and harness sample visible
LVDS sample approval folder beside shielded cable assembly and panel connector mockup
FAQ
Can you work from old industrial-monitor LVDS samples?
Yes. Old parts help, but connector matching, differential route, shielding notes, and active equipment-version boundaries still need to be checked before the sample can represent the released build.
What is the minimum input for an industrial-monitor LVDS quotation?
Send connector references, pin mapping, differential-route notes, project stage, and expected quantity.
Why do industrial-monitor LVDS programs need more than connector model and pin count?
Because installation fit, differential path, shielding execution, and revision scope often decide whether the assembly can actually be released cleanly.
Can one industrial-monitor LVDS assembly cover several equipment versions?
Only when the controller-panel pair, connector suffixes, net allocation, grounding, route, service access, and qualified equipment configuration remain unchanged; otherwise treat it as a new release.
Can review start before the full drawing package is complete?
Yes. Early review can start from connector references, route context, and current industrial-display constraints, then tighten as the file package becomes clearer.
